Jdiag TopDiag P100 Pro circuit tester with alligator clip battery cable and probe
Sensor & Circuit TesterMultimeter + Oscilloscope9V–30V Systems

Jdiag TopDiag P100 Pro Sensor & Circuit Tester

TopDiag · Circuit Testers
₹9,999₹15,00033% off
Inclusive of GST · EMI available · Pan-India delivery 5–7 days
  • ✓Sensor tester, wiring tester, multimeter & oscilloscope — all in one probe

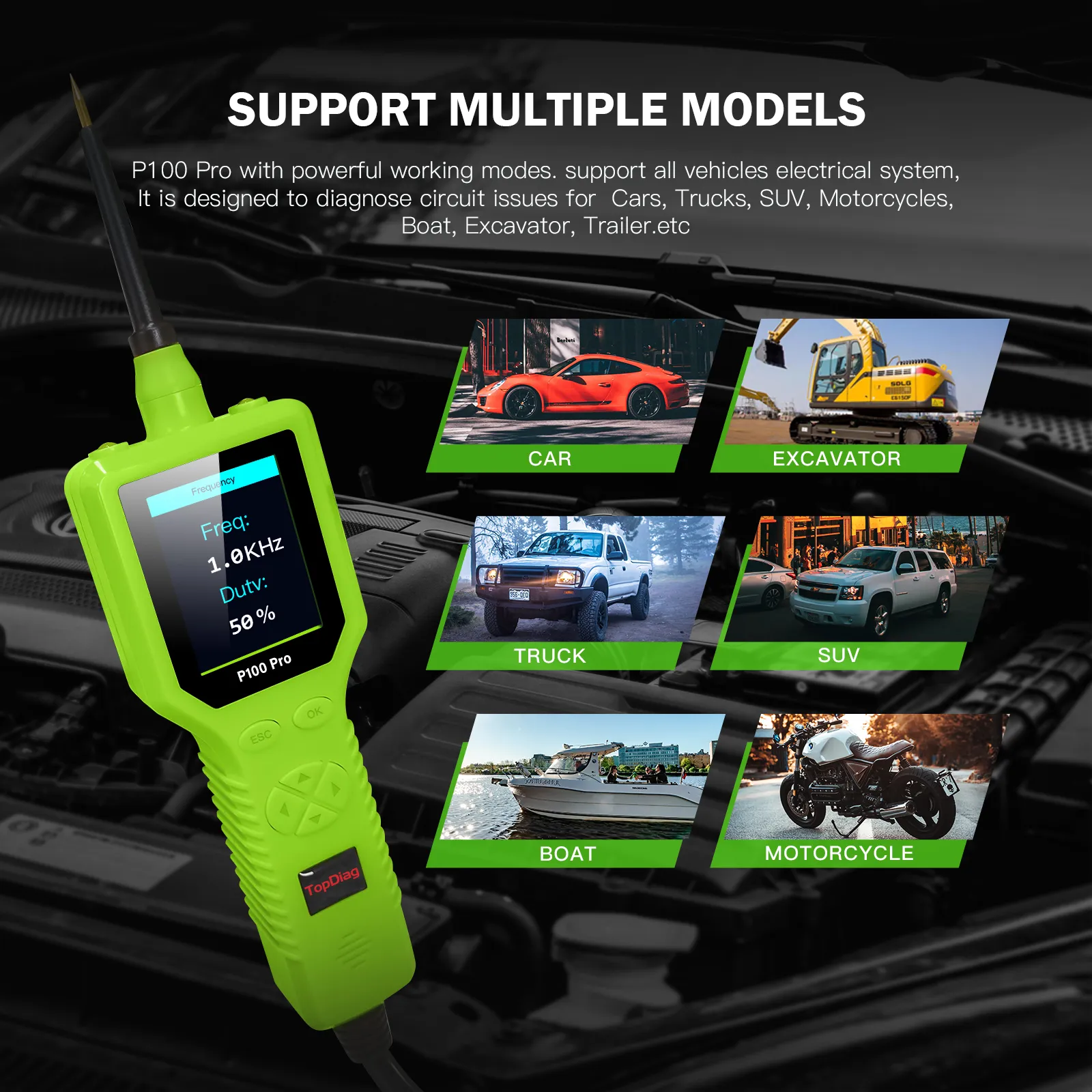

  • ✓Tests all 9V–30V systems · cars, trucks, SUVs, bikes, boats, excavators
  • ✓2.4″ colour display · 0–5V supply · component activation · online upgrade
Enquire on WhatsApp Call
Quick answer

TopDiag P100 Pro Circuit Tester is a circuit tester from TopDiag, sold in India by Car Tool India at ₹9,999 including GST, with a GST invoice and pan-India delivery in 5–7 days. Sensor tester, wiring tester, multimeter & oscilloscope — all in one probe.

Product description

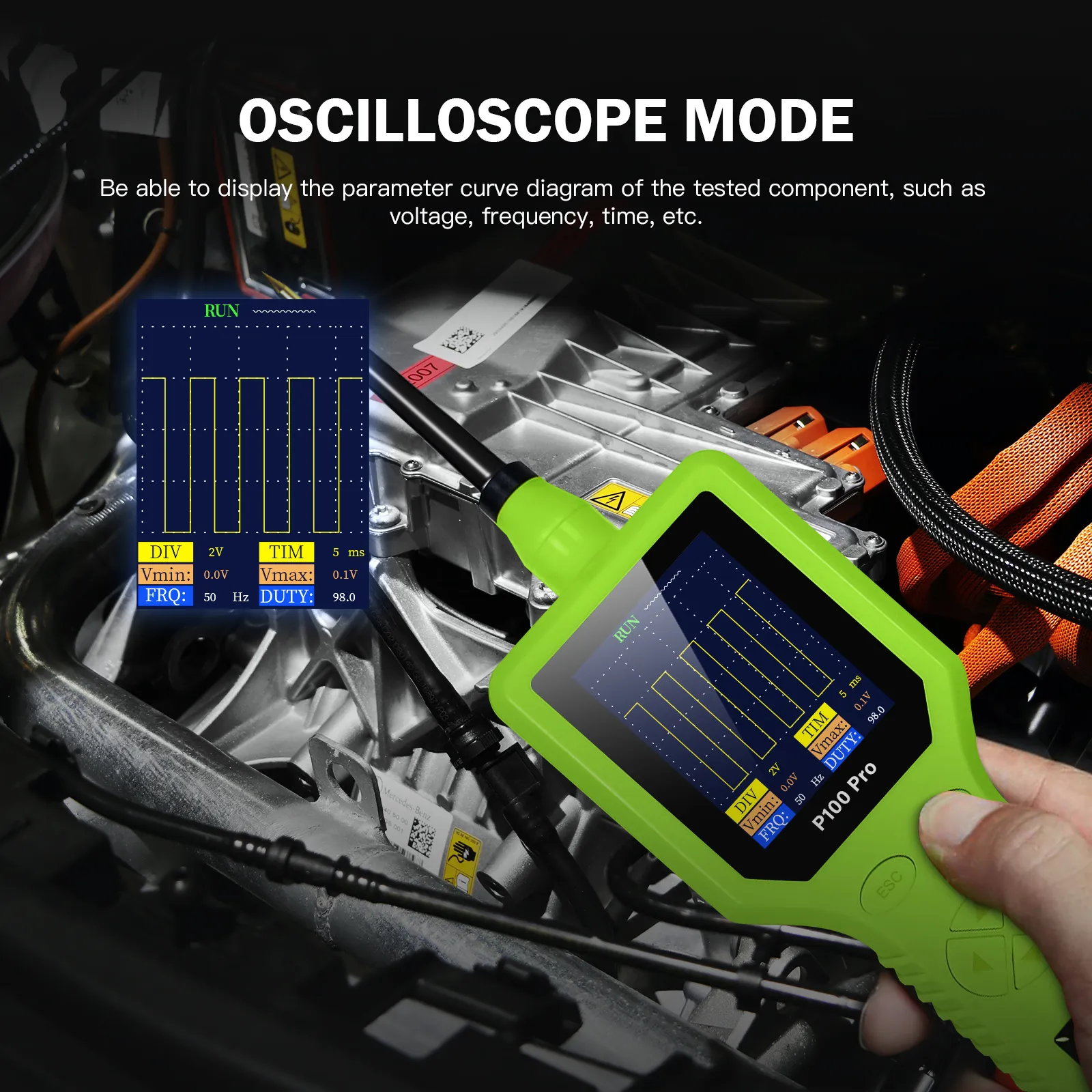

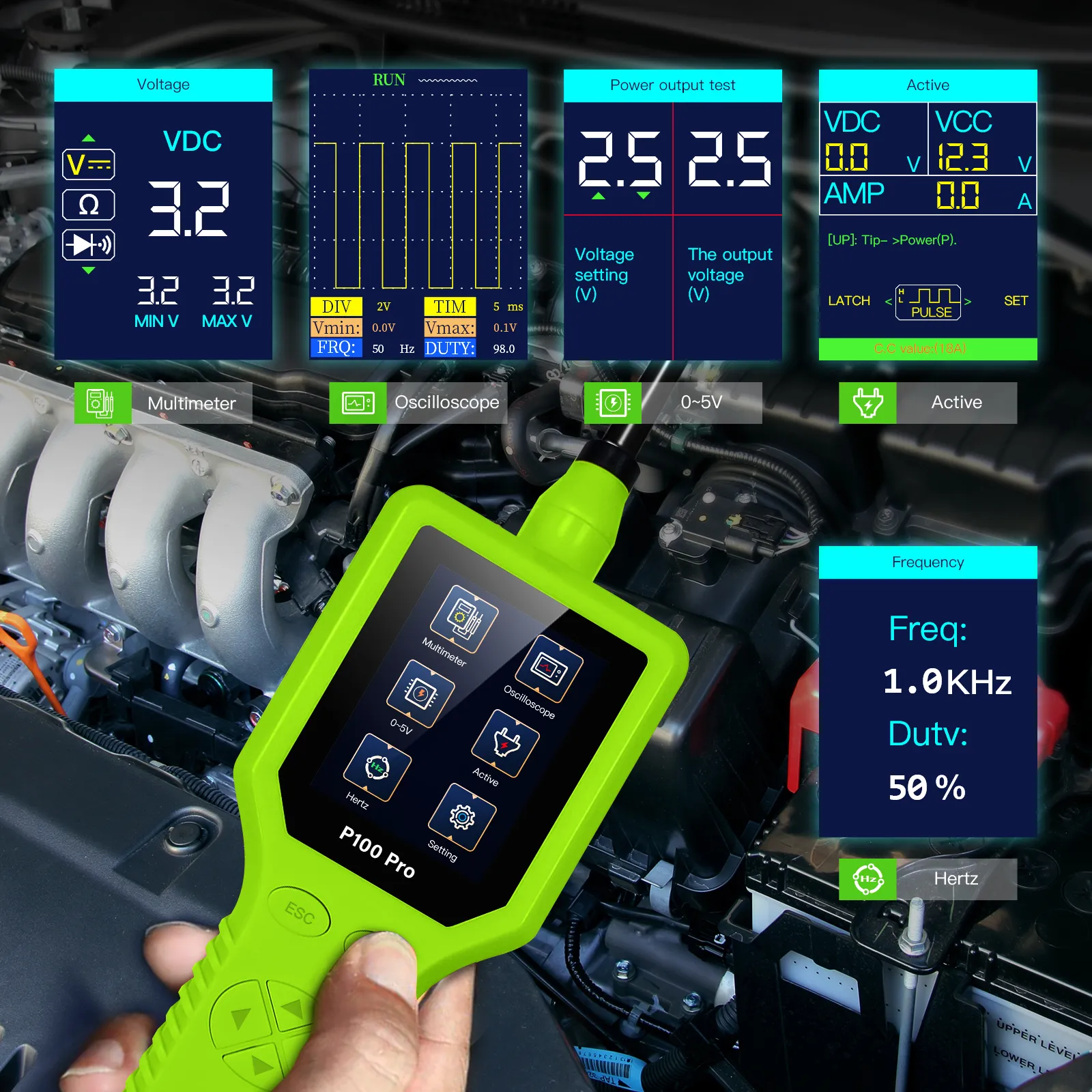

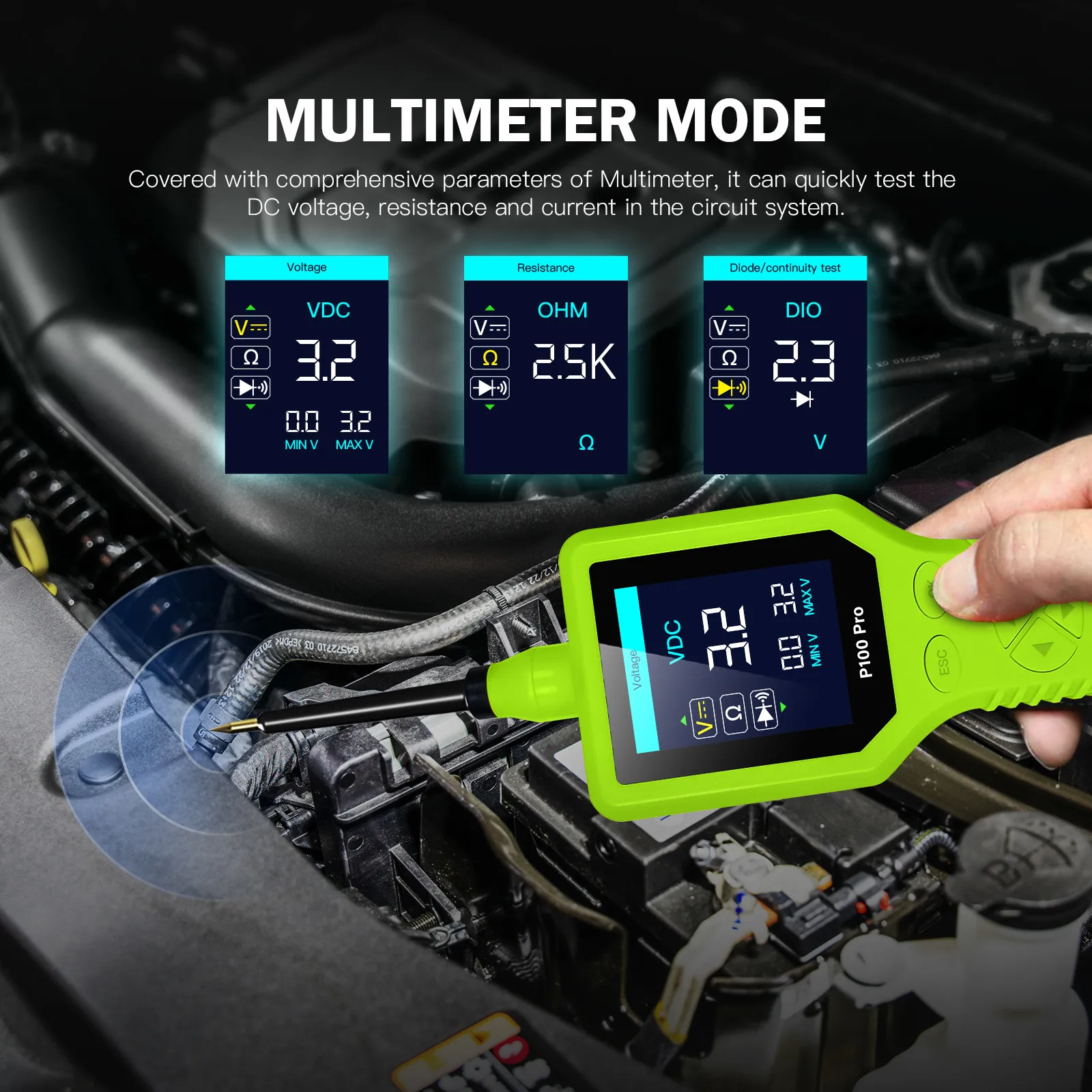

Jdiag TopDiag P100 Pro is a new-generation intelligent circuit analyzer — sensor tester, wiring tester, built-in multimeter and oscilloscope in a single probe. It quickly tests all 9V–30V electronic systems and works on cars, trucks, SUVs, motorcycles, boats and excavators. Features a 2.4-inch TFT colour display, 0–5V adjustable power supply, component activation, intelligent circuit-breaker protection and online upgrade.

Specifications
Specifications & parameters
Display2.4″ (320×240 DPI) TFT true-colour
Working temperature0–60 °C (32–140 °F)
Storage temperature-40–70 °C (-40–185 °F)
External power supply12V or 24V (battery powered)
Working voltage9V (min) – 30V (max)
Measuring voltage0.1V (min) – 100V (max)
Resistance range1 Ω – 200K Ω
Active current range0 – 18A
Max continuous current18A
ColoursBlack, red, orange, yellow, green, blue

Sold and supported by Car Tool India · 1-year warranty · GST invoice
