Thinkcar ThinkScan 689BT 8-inch bidirectional scan tool with Bluetooth dongle
New ArrivalCTI ChoiceCAN-FD · DoIP

ThinkScan 689BT — Lifetime Free Update and Thinkcar Support

Thinkcar · Car & Truck Scanners
₹69,000₹75,0008% off
Inclusive of GST · EMI available · Pan-India delivery 5–7 days
  • ✓OE-level full-system diagnostics across 150+ car brands
  • ✓ECU coding, bi-directional active tests & 35+ reset functions
  • ✓8-inch screen · wireless Bluetooth dongle · lifetime free updates

Best for: multi-brand car workshops and technicians who want coding and active tests without a subscription

Enquire on WhatsApp Call
Display8″ · 1280×800
RAM / ROM4 GB / 64 GB
Coverage150+ brands
Resets35+ functions
ConnectionBluetooth 5.0
UpdatesLifetime free
Vehicle type:CarsSUV / MUVLCV / PickupEV-ready protocols
Quick answer

Thinkcar ThinkScan 689BT is a car & truck scanner from Thinkcar, sold in India by Car Tool India at ₹69,000 including GST, with a GST invoice and pan-India delivery in 5–7 days. OE-level full-system diagnostics across 150+ car brands.

Product description

8-inch wireless bidirectional scan tool with OE-level full-system diagnostics for 150+ car brands. Supports ECU coding, bi-directional active tests, CAN-FD and DoIP protocols, FCA SGW AutoAuth, AutoVIN and AutoScan, plus 35+ maintenance reset functions. Cortex-A53 quad-core with 4 GB RAM, 64 GB storage, Bluetooth 5.0 dongle and lifetime free software updates.

Specifications
Operating systemAndroid 10
Touchscreen8-inch · 1280 × 800
CPU2.0 GHz Quad-Core (Cortex-A53)
RAM / Storage4 GB / 64 GB
Battery4150 mAh / 3.8V
ConnectivityBluetooth 5.0 · 2.4G / 5G WiFi
Working voltage9 – 18V · ≤1.2A
Working environment0 – 50°C (storage −20 – 60°C)
ProtocolsCAN-FD, DoIP, ISO 9141-2, ISO 14230-2, ISO 15765, SAE-J1850 VPW / PWM, SAE J2610, ISO 11898, TP 2.0 / 1.6 and more
Languages30 languages
SoftwareLifetime free update
Warranty1 Year
Functions (12)
Read & Clear DTCsFull System ScanECU CodingBi-Directional / Active TestRead Live DataData Stream GraphingRead Freeze FrameOn-Board Monitor TestI/M ReadinessO2 Monitor TestAutoVIN & AutoScanFCA SGW AutoAuth
FAQ
Is the ThinkScan 689BT a full bidirectional scan tool?

Yes — the 689BT sends active commands to test individual components such as relays, coils, injectors, cooling fans, windows, wipers and ABS pump motors, so you can confirm a fault without dismantling the vehicle.

Does it support ECU coding?

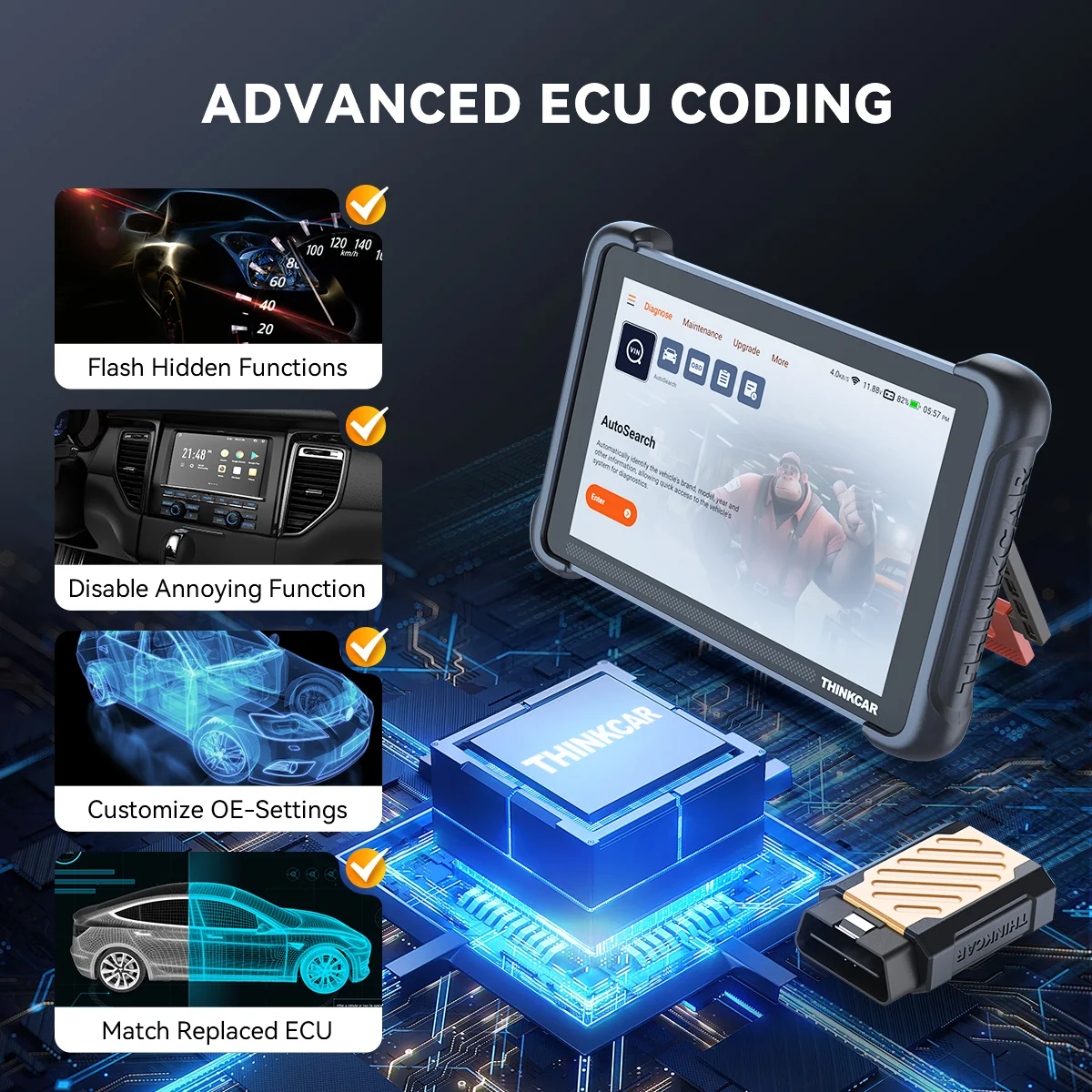

Yes — OE-level ECU coding is included. You can match modules after replacement, enable or disable hidden factory functions, restore settings after data loss and complete programmable module installation on supported models.

Does it work with CAN-FD and DoIP vehicles?

Yes — CAN-FD and DoIP are both supported, covering newer GM and Chrysler models plus DoIP vehicles such as Volvo, Land Rover, Jaguar and BMW F/G chassis. FCA SGW AutoAuth is also built in.

Are software updates free?

Yes — the ThinkScan 689BT comes with lifetime free software updates over 2.4G/5G WiFi, so coverage and functions stay current at no extra cost.

How many reset functions does it have?

35+ maintenance and service functions including Oil Reset, Brake Reset, ABS Bleeding, DPF Regen, Injector Coding, Battery Matching, Steering Angle Reset, TPMS Reset, Throttle Relearn, Immobilizer Reset and Gearbox Relearn. Exact availability varies by vehicle model and software version.

Can it be expanded with other tools?

Yes — the 689BT works with Thinkcar expansion tools including the TKEY101 key programmer, THINKTPMS, endoscope, oscilloscope, printer and Bluetooth battery clip.

What warranty and support do I get?

The ThinkScan 689BT includes 1 year of support and warranty with a GST invoice. Car Tool India also helps with activation, setup and real-time troubleshooting.

What about delivery and EMI?

Pan-India delivery takes 5-7 days and EMI options are available. Contact us on WhatsApp or call for the current details.
